The AVerMedia ET510 converts HDMI, VGA, component and composite signals to multiple outputs, supporting dual‑display and 1080p upscaling.
The ET510 is a versatile signal converter that accepts a range of video inputs—including HDMI, VGA, component and composite—and can output to two displays simultaneously, enhancing image resolution up to 1080p. It features a remote control with optional infrared extender for easy operation.

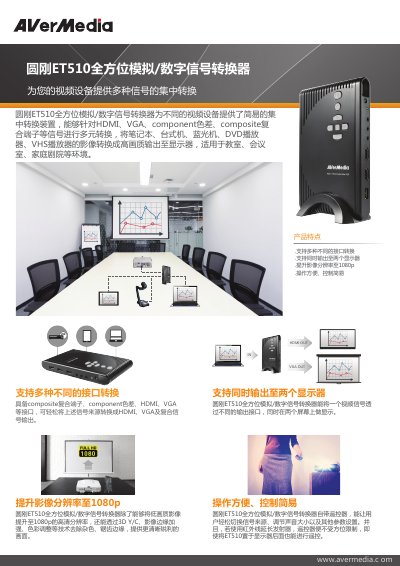

The device provides HDMI ×2, VGA, 3.5 mm audio/composite shared ports, component input via 3.5 mm adapter, and a USB 2.0 port for firmware updates. Power is supplied by a 12 V / 1.5 A adapter, and the unit weighs 226 g. The package includes the converter, stand, cables, remote, and power adapter. This manual is written in Chinese.
| Input signals – HDMI (x2) | HDMI x 2 |
|---|---|
| Input signals – 3.5 mm audio | 3.5 mm audio |
| Input signals – Composite (x2) | Composite x 2 |
| Input signals – Component | Component (via 3.5 mm adapter) |
| Input signals – USB 2.0 | USB 2.0 (firmware update) |
| Output signals – HDMI | HDMI |
| Output signals – 3.5 mm audio & composite shared | 3.5 mm audio & composite shared port |
| Power adapter | 12 V / 1.5 A |
| Weight | 226 g |
It accepts HDMI (two ports), VGA, composite, component (via 3.5 mm adapter), and a 3.5 mm audio source, plus a USB 2.0 port for firmware updates.
Yes, the converter can send the video signal to two monitors simultaneously.
The device can upscale video to a maximum resolution of 1080p.
