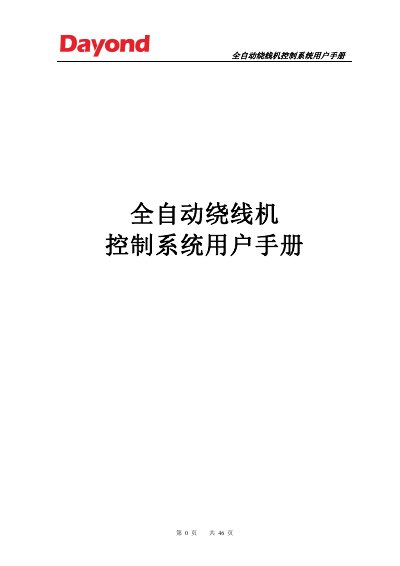

Automatic Winding Machine Control System User Manual

About this manual

The manual provides a complete description of the control system used in four‑axis automatic winding machines, covering system overview, welcome screen, main interface, and manual operation functions. It details how to navigate the interface, select and run archives, and monitor real‑time status such as current production count and spindle speed.

Additional sections cover I/O testing, comprehensive parameter configuration (speed, limits, zero point, teaching, equivalent, password, reset, process), archive management and programming, alarm diagnosis (input signal, soft‑limit, servo), and a step‑by‑step machine tuning guide from wiring to production start‑up. This manual is written in Chinese.

What's inside

• System Overview
• Welcome Interface
• Main Interface
• Manual Operation
• I/O Testing
• Parameter Settings
• Archive Management
• Archive Programming
• Alarms
• Machine Tuning Guide

Frequently asked questions

How do I reset the machine to its mechanical origin?

Press the reset button; the device will return to the mechanical origin and then to the work zero point if configured.

How can I execute a single step in the program?

Press the start key once; the system will execute one step sequence.
