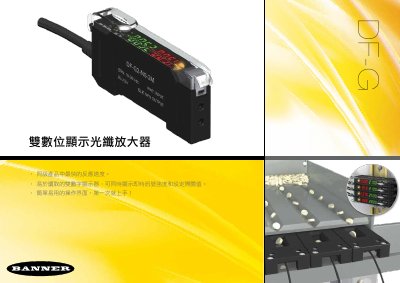

The Banner DF-G series dual‑display fiber optic amplifier provides fast 10 µs response, dual numeric readout, IO‑Link support and IP50 protection for…
The DF‑G series offers the fastest response speed among its class, with a 10 µs reaction time and 5 µs repeatability. It features an easy‑to‑read dual numeric display that shows real‑time signal strength and setpoint values, and an intuitive interface that can be mastered on first use.
Designed for harsh industrial environments, the amplifier includes IP50 housing, ECO power‑saving mode that cuts current consumption by 25 %, and built‑in IO‑Link communication for remote parameter planning and monitoring. Various fiber options, connector types and model variants (DF‑G1, DF‑G2) allow flexible integration into automation systems. This manual is written in Chinese.
| Operating Voltage | 10‑30 V DC |
|---|---|
| Fiber Core Diameter | Ø 2.2 mm (plastic or glass) |
| Response Speed | 10 µs |
| Repeatability | 5 µs |
| Protection Rating | IP50 |
| IO-Link Support | Yes |
| ECO Power‑Saving Mode | Reduces current consumption by 25 % |
The DF‑G series has a reaction speed of 10 µs, with a repeatability of 5 µs.
Yes, it supports the IO‑Link protocol for remote parameter planning and signal monitoring.
The amplifier is housed in an IP50 rated enclosure suitable for harsh environments.
