The Yutai Technology G9909 series 5G industrial gateway offers high‑speed cellular connectivity, edge computing, and extensive industrial interfaces.
The G9909 series is a high‑speed 5G industrial gateway that uses cellular networks as the transport layer and supports full‑band 5G/4G/3G/2G. It provides powerful edge data collection, real‑time response, and secure VPN options for industrial IoT applications.

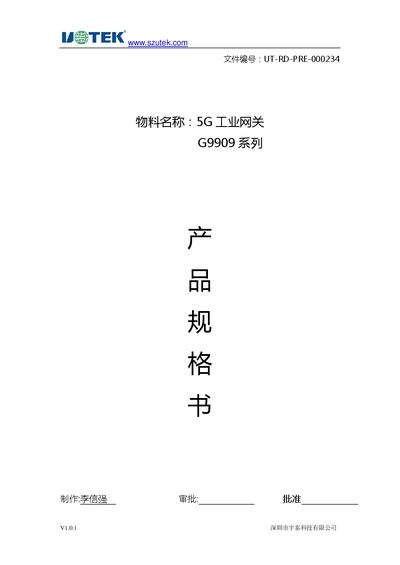

Designed for harsh industrial environments, the device features an IP40 metal enclosure, fan‑less operation, wide input voltage (+12~48 VDC), and multiple industrial interfaces such as RS232/RS485, CAN, USB, and Ethernet. It can be managed locally via a web UI or remotely through the Yutai Device Manager Cloud platform, and supports over‑the‑air firmware upgrades. This manual is written in Chinese.
| Processor | Quad‑core Cortex‑A7 |
|---|---|
| DRAM | 512 MB (up to 1 GB) |
| NOR Flash | 32 MB (up to 64 MB) |
| eMMC | 8 GB (4 GB optional) |
| Power Input | +12 V to +48 V DC |
| Standard Power Supply | DC 12 V, 1.5 A |
| Dimensions | 148 mm × 125 mm × 45 mm (W×D×H) |
| Weight | ≈730 g |
| Ingress Protection | IP40 |
| Operating Temperature | -30 °C to +75 °C |
It supports full‑band 5G (n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79), 4G FDD‑LTE (B1/B3/B5/B8), TDD‑LTE (B34/B38/B39/B40/B41), 3G WCDMA (B1), CDMA2000, EVDO, TD‑SCDMA, GSM/EDGE/GPRS, and related frequencies.
