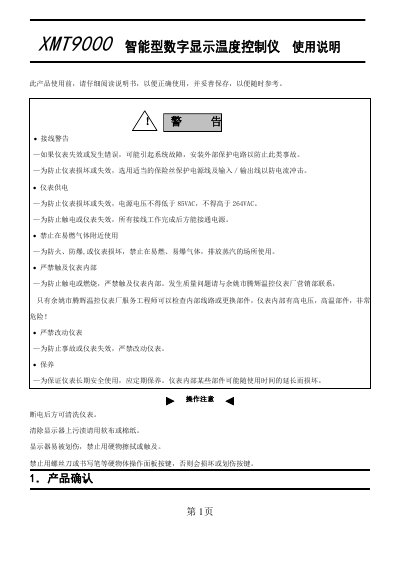

Tenghui XMT9000 Temperature Controller User Manual

About this manual

This manual explains safety precautions, required power supply (85‑264 VAC) and environmental limits (0‑50 °C) before installation. Detailed installation instructions cover panel mounting, spacing, and securing the instrument in the process tank.

The document then describes wiring, supported input signal types (thermocouple, RTD, mV, universal), output modes (relay PID, current PID, SCR, SSR) and how to configure parameters such as HY, P, I, D, and lock passwords. It also includes menu navigation, self‑tuning, communication settings (RS‑485/RS‑232) and maintenance advice. This manual is written in Chinese.

What's inside

• Safety Precautions
• Product Confirmation
• Installation
• Technical Specifications
• Wiring
• Panel Layout
• Operation
• Parameter Settings
• Communication Interfaces
• Menu Navigation

Specifications

Frequently asked questions

What power supply voltage is required for the XMT9000?

The controller must be powered with an AC voltage between 85 VAC and 264 VAC.

How do I enter and exit the menu on the controller?

Press the SET key for three seconds to enter the menu; press SET+∨ to enter sub‑menus and SET+∧ to exit.
