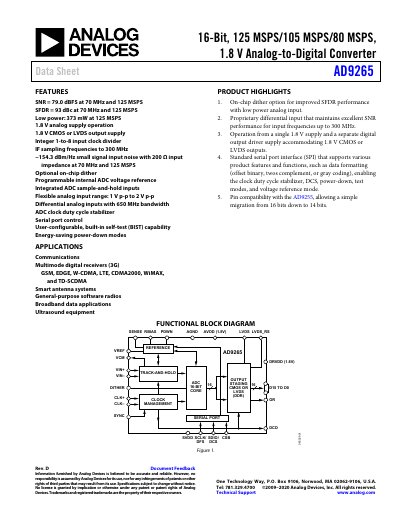

This datasheet details the specifications, features, and applications of the Analog Devices AD9265, a 16-bit, high-speed analog-to-digital converter.
The AD9265 is a 16-bit, multistage differential pipelined ADC designed for communications and instrumentation. It supports sample rates up to 125 MSPS with an integrated voltage reference and optional on-chip dithering to improve SFDR performance.
The device features flexible analog input ranges from 1 V p-p to 2 V p-p and operates from a single 1.8 V supply. Output data is available in parallel 1.8 V CMOS or LVDS formats, controlled via a standard SPI-compatible serial interface.
| Resolution | 16 Bits |
|---|---|
| Sample Rate (Max) | 125 MSPS |
| Input Bandwidth | 650 MHz |
The device provides a full 16-bit resolution.
The converter supports parallel 1.8 V CMOS or LVDS (DDR) outputs.
