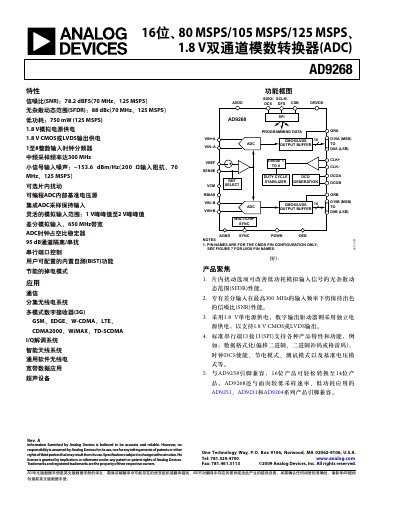

This datasheet describes the AD9268, a 16-bit dual-channel analog-to-digital converter (ADC) with sampling rates up to 125 MSPS and 1.8V operation.
The AD9268 is a high-performance, low-cost, small-size, and multifunctional dual-channel ADC designed for communication applications. It features a multi-stage differential pipelined architecture with integrated output error correction logic and supports sampling rates of 80 MSPS, 105 MSPS, or 125 MSPS. This manual is written in Chinese.
| Resolution | 16 bits |
|---|---|
| Sampling Rate | 80, 105, or 125 MSPS |
| Channels | Dual-channel |
| Supply Voltage (AVDD) | 1.8 V |
| Signal-to-Noise Ratio (SNR) | 78.2 dBFS @ 70 MHz, 125 MSPS |
| Spurious-Free Dynamic Range (SFDR) | 88 dBc @ 70 MHz, 125 MSPS |
| Power Consumption | 750 mW @ 125 MSPS |
The device operates with a 1.8 V analog power supply.
The device supports sampling rates of 80 MSPS, 105 MSPS, or 125 MSPS.
The power consumption is 750 mW when operating at 125 MSPS.
The analog input bandwidth is 650 MHz.
