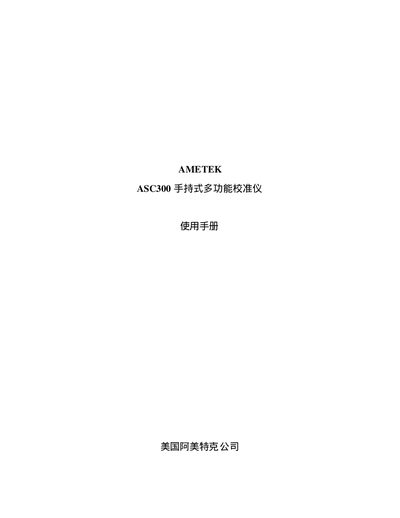

The Ametek ASC300 manual provides operating instructions, interface details, measurement modes, and output settings for the multi‑function calibrator.
This manual describes the Ametek ASC300 hand‑held multi‑function calibrator. It covers the device’s front‑panel interface, menu navigation, back‑light adjustment, power settings, and the various measurement and output modes such as voltage, current, temperature (TC/RTD), pressure, frequency, pulse and signal output.
The document also lists the technical specifications, calibration procedures, and safety information. Users can find step‑by‑step instructions for setting voltage or current outputs, configuring temperature sensors, and performing self‑calibration checks. This manual is written in Chinese.
| Voltage Output Range | 0.000V – 30.000V |
|---|---|
| Current Output Range | 0.000mA – 24.000mA |
| TC (J type) Range | -210 °C to 0 °C |
| RTD (Pt100) Range | -200 °C to 100 °C |
Use the BACK LIGHT setting (option 2) to increase or decrease the display brightness.
The device can output a current from 0 mA up to 24 mA.
