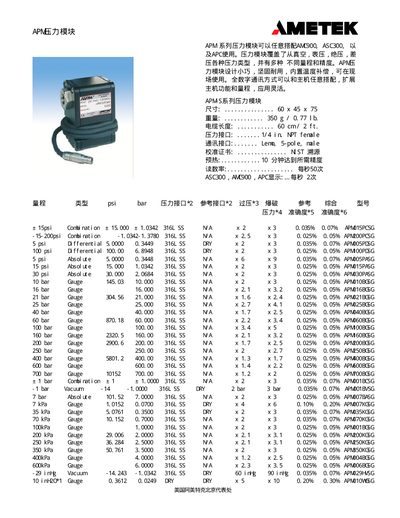

Ametek APM Pressure Module Specification Sheet

About this manual

The sheet details the APM pressure‑module family, covering combination, gauge, absolute, differential and vacuum types. Each model’s pressure range spans from -15 psi up to 700 bar, with material construction of 316L stainless steel and options for dry‑air or corrosive‑gas compatibility.

Technical data include module dimensions (99 × 55 × 55 mm), weight (450 g), pressure interface (1/4 in. NPT female), communication connector (Lemo 5‑pole male), a 10‑minute warm‑up time, and a reading rate of 50 samples per second. Optional communication kits (APM‑S, APM‑H) are also listed. This manual is written in Chinese.

What's inside

• Pressure Ranges and Types
• Dimensions and Weight
• Pressure and Reference Interfaces
• Communication Interface
• Calibration Certificate
• Warm‑up Time and Reading Rate
• Optional Accessories

Specifications

Frequently asked questions

What communication connector do the APM modules use?

They use a Lemo 5‑pole male connector for digital communication.

What is the accuracy of the combination pressure modules?

Full‑scale accuracy is ±0.035 % (plus 0.07 % repeatability).
