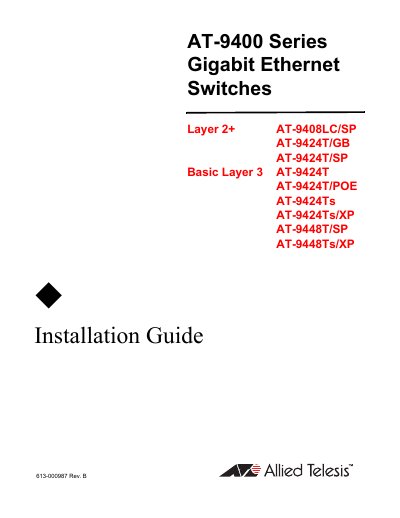

Allied Telesis BAT-9400 Series Gigabit Ethernet Switches Installation Guide

Installation guide for the Allied Telesis BAT-9400 Series Gigabit Ethernet Switches, covering setup, cabling, and troubleshooting.

Brand: Allied Telesis
Document type: Installation Guide
Language: English
Pages: 84
File format: PDF
File size: 2.1 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B6C6E69AFF3F6056236F1BA5623B2E92
PDF: Allied Telesis BAT-9400 Series Gigabit Ethernet Switches Installation Guide PDF

About this manual

This document provides installation instructions for the Allied Telesis BAT-9400 Series Gigabit Ethernet Switches, including models such as the AT-9408LC/SP, AT-9424T, and AT-9448Ts/XP. It covers safety precautions, site selection, unpacking, rack mounting, and cabling procedures for twisted pair and fiber optic ports.

What's inside

Overview
Installing the Switch
Troubleshooting
Technical Specifications
Safety Precautions
Cabling
Power Supply
Management Session

Specifications

Wavelength	850 nm
Output Power Min	-9.5 dBm
Output Power Max	-1.5 dBm
Maximum Operating Distance (50/125 µm)	550m
Connector Type	LC-duplex

Frequently asked questions

What is the maximum operating distance for 50/125 µm multimode fiber?

The maximum operating distance is 550m.

What is the minimum output power for the 1000Base-SX port?

The minimum output power is -9.5 dBm.
