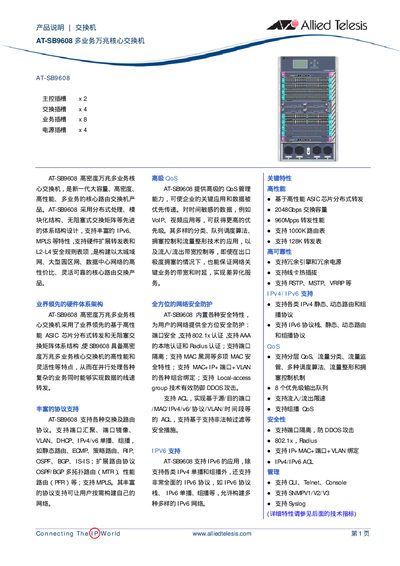

AT-SB9608 is a new generation of high-capacity, high-density, high-performance, multi-service core router switch product. It adopts distributed processing, modular structure, non-blocking switch matrix and other advanced system architecture design, supports rich IPv6, MPLS and other features, supports hardware extended forwarding table and L2-L4 security rule table items, is a high-performance, flexible and reliable core router switch product for building Ethernet metropolitan area networks, large campus networks and data center networks.
The AT‑SB9608 multi‑service 10‑Gbps core switch delivers high performance with a distributed ASIC‑based forwarding engine and a non‑blocking switching matrix. It supports a wide range of Layer 2/3 protocols, including IPv4/IPv6, MPLS, OSPF, BGP, RIP, IS‑IS, and offers advanced QoS and security features.
The chassis provides flexible expansion with 2 controller slots, 4 switching slots, 8 service slots and 4 power slots. Management interfaces include CLI, Telnet, Console, SNMP v1/v2/v3 and Syslog, while security functions cover 802.1X, AAA, MAC‑based controls and ACLs. Technical specifications such as 2048 Gbps switching capacity and 960 Mpps forwarding performance are listed in the data sheet. This manual is written in Chinese.
| Switching capacity | 2048 Gbps |
|---|---|
| Forwarding performance | 960 Mpps |
| Routing table capacity | 1000K entries |
| Forwarding table capacity | 128K entries |
| Power consumption (max) | 3000 W |
| Dimensions (HxWxD) | 705 x 482 x 410 mm |
| Operating temperature | 0 °C ~ 45 °C |
The switch provides four power slots for power modules.
The maximum switching capacity is 2048 Gbps.
