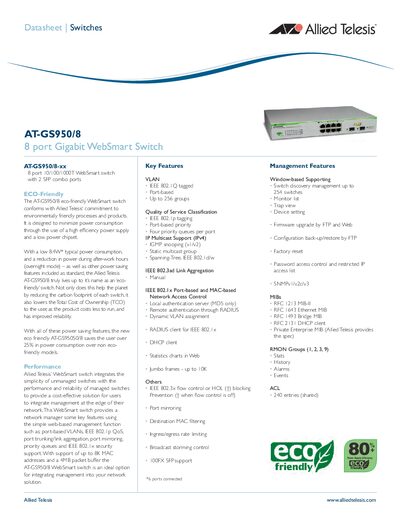

The Allied Telesis AT-GS950/8 is an 8‑port Gigabit WebSmart switch with 2 SFP combo ports, offering eco‑friendly low power consumption and advanced…
The AT‑GS950/8 is an 8‑port Gigabit WebSmart switch designed for low power operation, featuring a high‑efficiency power supply and a low‑power chipset. It supports eco‑friendly operation with typical power consumption of 8.40 W and a maximum of 9.70 W.
Key features include port‑based VLANs, IEEE 802.1p QoS, link aggregation, port mirroring, and IEEE 802.1x security. The switch offers up to 256 VLAN groups, 8 K MAC address table, 4 MB packet buffer, and a 16 Gbps switching capacity, making it suitable for edge network management.
| Ports | 8 x 10/100/1000BASE‑T |
|---|---|
| SFP Combo Ports | 2 |
| Maximum Power Consumption | 9.70 W |
| MAC Address Table | 8 K entries |
| Packet Buffer | 4 MB DRAM |
| Dimensions | 28 cm × 18 cm × 4.4 cm |
| Weight | 1.5 kg (3.3 lb) |
| Operating Temperature | 0 °C to 40 °C |
It supports up to 256 VLAN groups.
Yes, it supports IEEE 802.3ad link aggregation.
The switch measures 28 cm × 18 cm × 4.4 cm.
