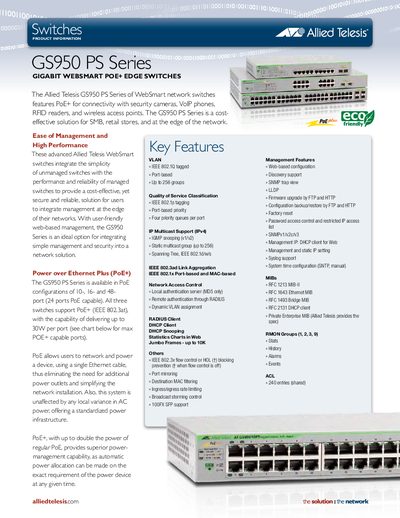

The Allied Telesis GS950 PS Series provides PoE+ Gigabit WebSmart edge switches with up to 48 ports, VLAN, QoS, and advanced management features.
The GS950 PS Series of WebSmart network switches delivers Power over Ethernet Plus (PoE+) for devices such as security cameras, VoIP phones, RFID readers, and wireless access points. Available in 10‑, 16‑, and 48‑port configurations, the switches combine unmanaged simplicity with managed performance, offering web‑based configuration, VLAN tagging, QoS classification, link aggregation, and extensive security controls.
Technical specifications include forwarding rates up to 96 Gbps, up to 8 000 MAC addresses, 4 000 VLAN IDs, 1 MB DRAM packet buffer, 16 MB flash, and PoE+ power up to 30 W per port. The units operate from 0 °C to 40 °C (non‑operating –25 °C to 70 °C) and meet multiple safety and environmental standards such as UL60950‑1, FCC, CE, and RoHS.
| Performance (10 Mbps) | 14,880 pps |
|---|---|
| MAC addresses | 8,000 |
| VLAN IDs available | 4,000 |
| Packet buffer | 1 MB DRAM |
| Maximum PoE+ power per port | 30 W |
| Maximum PoE power (48‑port model) | 370 W |
Each PoE+ port can deliver up to 30 W of power (IEEE 802.3at).
The series is offered in 10‑, 16‑, and 48‑port PoE configurations.
The AT‑GS950/48PS model provides a switching capacity of 96 Gbps (71.42 Mpps).
