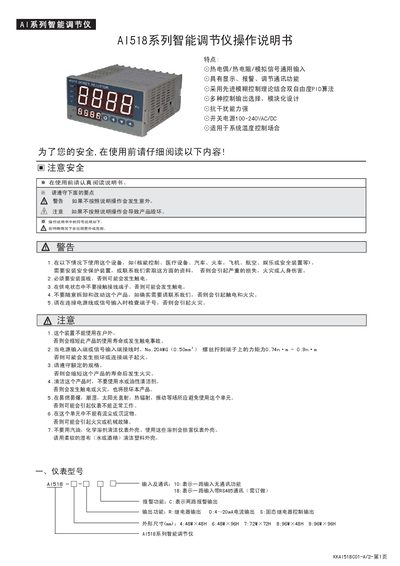

AI KKAI518C01-A/2 Intelligent Regulator Operation Manual

About this manual

The AI KKAI518C01-A/2 is an intelligent regulator designed for temperature control systems. It supports universal inputs including thermocouples (K, J, E, T, B, R, S), thermistors (PT100, CU50, CU100), and linear signals (voltage, current, resistance). The device features advanced fuzzy control theory combined with dual-degree-of-freedom PID algorithms and offers multiple output options such as relay, solid-state relay, and 4-20mA current output. It is powered by a 100-240VAC/DC switch-mode power supply and includes two independent alarm outputs. This manual is written in Chinese.

What's inside

• Instrument Model
• Model Specification
• Main Technical Parameters
• Panel Name
• Operation Process
• Instrument Menu
• Wiring Diagram
• Alarm Function Table
• Communication Protocol
• Troubleshooting

Specifications

Frequently asked questions

What are the supported thermocouple types?

The instrument supports K, J, E, T, B, R, and S type thermocouples.

What is the maximum load resistance for the 4-20mA output?

The maximum load resistance for the 4-20mA output is 600Ω.

Which communication protocol does the device use?

The device uses the Modbus RTU communication protocol.
