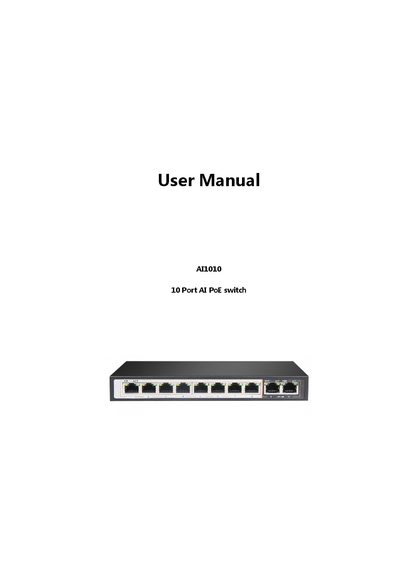

The AI1010 10‑Port PoE Switch User Manual provides an overview, installation steps, technical specifications, and safety guidelines for the AI PoE switch.
The AI1010 is a 10‑port PoE switch that supports four working modes—AI VLAN, AI CCTV video monitoring, AI power, and AI QoS—to improve network performance and prioritize video traffic. It complies with IEEE 802.3af/at standards, offers auto‑MDI/MDIX, fanless design, and plug‑and‑play operation.
The manual includes installation diagrams, indicator descriptions, safety cautions, and detailed technical specifications such as port types, transfer rates, power output, dimensions, and environmental limits.
| PoE Ports | 8 × 10/100 Mbps PoE RJ45 ports (port 1‑8) |
|---|---|
| Non‑PoE Ports | 2 × 10/100 Mbps RJ45 ports (port 9‑10) |
| Transfer Rate | 100 Mbps full‑duplex, 10/100 Mbps half‑duplex |
| Network Protocols | IEEE 802.3i, 802.3u, 802.3x, 802.3af, 802.3at |
| Bandwidth | 2 Gbps (no block) |
| Maximum Network Delay | 20 µs (64‑byte packet) |
| Maximum Output Power per Port | 30 W |
| Maximum Total Power Supply | 96 W |
| Dimensions (L×W×H) | 184 mm × 94 mm × 27 mm |
| Weight | 0.5 kg |
| Operating Temperature | 0 °C ~ 40 °C |
| Operating Humidity | 10 % ~ 90 % (non‑condensing) |
| Safety Regulations | CE, RoHS, FCC, CCC |
The AI1010 supports four modes: AI VLAN mode, AI CCTV video monitoring mode, AI power mode, and AI QoS mode.
In AI Extend mode, ports 1‑8 can deliver power up to 250 meters when using Cat 5 or higher cable.
Each PoE port can provide up to 30 W of power.
