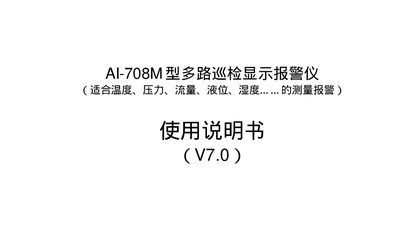

AI-708M Multi-Channel Display Instrument Manual

The manual provides description, installation, wiring, configuration, and specifications for the AI-708M multi-channel display instrument.

Brand: ai
Document type: User Manual
Language: Chinese
Pages: 23
File format: PDF
File size: 63 KB
Updated: 01 October, 2026
MD5 checksum: 47CA1B239E43C0CF8D43D09D25A1FFBD
PDF: AI-708M Multi-Channel Display Instrument Manual PDF

About this manual

The AI-708M is a modular multi‑channel display instrument designed for temperature, pressure, flow, level and humidity monitoring. It offers programmable input channels, digital calibration, filtering and a V7.X software platform for high‑precision measurement.

The document covers hardware installation, power requirements, wiring diagrams for RS485 and analog outputs, channel configuration, and troubleshooting steps to ensure reliable operation in industrial environments. This manual is written in Chinese.

What's inside

Overview
Specifications
Installation
Wiring Diagram
Channel Configuration
Operation
Troubleshooting
Technical Data

Specifications

Power output rating	30VDC/1A
Power output rating (AC)	264VAC/1A
Output voltage ranges	0‑1V, 0‑3V, 0‑5V, 1‑5V
Output current ranges	0‑10mA, 4‑20mA

Frequently asked questions

What output voltage options are available?

It provides selectable output voltages of 0‑1V, 0‑3V, 0‑5V, and 1‑5V.

Download PDF (63 KB)
