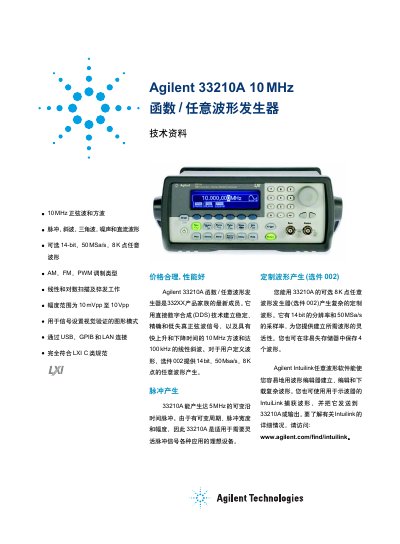

The Agilent 33210A manual provides specifications, features, and operation instructions for the 10 MHz function/arbitrary waveform generator.
The Agilent 33210A is a 10 MHz function and arbitrary waveform generator that produces sine, square, pulse, ramp, triangle, noise and DC waveforms. It offers a selectable 14‑bit, 50 MSa/s arbitrary waveform option with up to 8 k points, and supports AM, FM, PWM modulation, linear and logarithmic scans, and burst modes. The instrument includes front‑panel controls for frequency, amplitude, bias and timing, and can store four user‑defined waveforms in non‑volatile memory.
Standard interfaces are USB, GPIB and LAN with full SCPI command set, and optional external reference and ARB modules are available. Ordering information, accessories, and service contacts are listed at the end of the document. This manual is written in Chinese.
| Frequency range | 1 mHz – 10 MHz |
|---|---|
| Sample rate | 50 MSa/s |
| Interfaces | USB, GPIB, LAN |
| Power consumption | 50 VA (max) |
| Dimensions (W×H×D) | 261.1 mm × 103.8 mm × 303.2 mm |
| Weight | 3.4 kg |
| Non‑volatile waveform storage | 4 user waveforms |
The instrument can generate waveforms up to 10 MHz.
It includes USB, GPIB and LAN interfaces with full SCPI support.
The generator can store up to four user‑defined arbitrary waveforms.
