This datasheet provides performance and physical specifications for Agilent 1200 Series pumping systems, including isocratic, quaternary, and binary pumps.

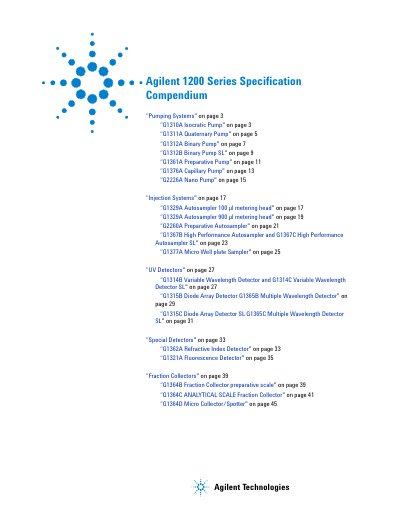

This document serves as a specification compendium for the Agilent 1200 Series Pumping Systems. It details the technical specifications for various pump models within the series, such as the G1310A Isocratic Pump, G1311A Quaternary Pump, and G1312A Binary Pump.
The text covers hydraulic system types, setable flow ranges, flow precision, pressure operating ranges, and gradient formation capabilities. It also lists physical specifications including weight, dimensions, line voltage, power consumption, and environmental operating conditions for each specific pump model.
| Setable flow range | 0.001 – 10 ml/min |
|---|---|
| Flow precision | ≤0.07% RSD |
| Pressure operating range | 0 – 40 MPa |
| Weight | 11 kg (25 lbs) |
| Dimensions | 140 × 345 × 435 mm |
| Line voltage | 100 – 120 or 220 – 240 VAC |
| Power consumption | 220 VA |
The recommended pH range is 1.0 – 12.5.
The pumps support Controller-area network (CAN), GPIB, RS-232C, APG, and LAN.
