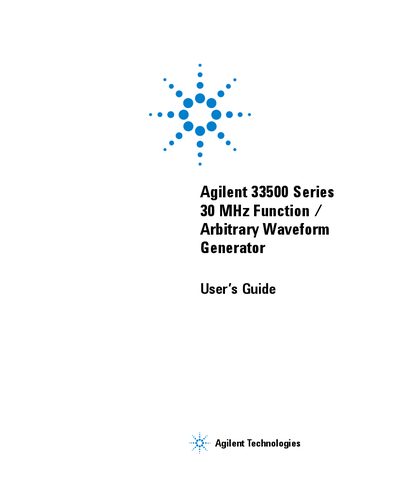

Agilent 33500 Series Function/Arbitrary Waveform Generator User's Guide

About this manual

The Agilent Technologies 33500 Series is a 30 MHz synthesized waveform generator featuring built-in arbitrary waveform and pulse capabilities. It combines bench-top convenience with flexible system features, offering 16 standard waveforms and optional downloadable memories of up to 16M points.

The instrument includes convenient front-panel controls such as an LCD display, numeric keypad, and knob for easy operation. System features include standard USB and LAN remote interfaces, LXI Class C compliance, and SCPI compatibility, allowing for versatile testing solutions.

What's inside

• The Front Panel at a Glance
• The Rear Panel at a Glance
• Front-Panel Number Entry
• Safety Notices
• Specifications
• Getting Started
• Waveform Generation
• Arbitrary Waveforms
• Modulation and Sweep
• Remote Operation

Frequently asked questions

What is the maximum operating temperature for this instrument?

The instrument is designed to operate at temperatures between 0 °C and 55 °C.

What is the maximum altitude at which this instrument can operate?

This instrument is designed to operate at altitudes up to 2000 meters.

What is the maximum relative humidity for operation?

The instrument is designed to operate at a maximum relative humidity of 20% to 80%.
