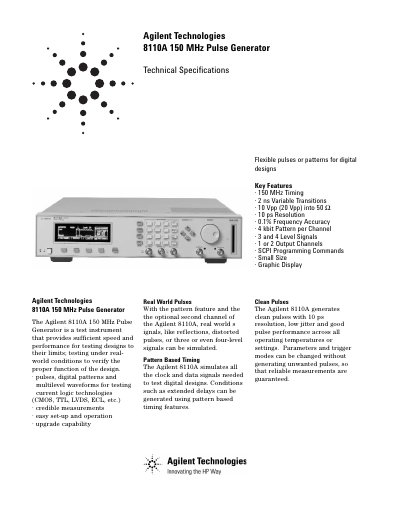

Technical specifications and key features for the Agilent 8110A 150 MHz Pulse Generator, covering timing, transitions, and resolution.
The Agilent 8110A 150 MHz Pulse Generator is a test instrument designed to provide sufficient speed and performance for testing digital designs to their limits. It offers flexible pulses or patterns for digital designs, supporting features such as 150 MHz timing, 2 ns variable transitions, and 10 ps resolution. The instrument is capable of generating 3 and 4 level signals and can operate with 1 or 2 output channels.
The device is designed for real-world pulse simulation, pattern-based timing, and reliable measurements across various operating conditions. Key capabilities include the simulation of real-world signals like reflections and distorted pulses, as well as the generation of clean pulses with low jitter. The Agilent 8110A supports SCPI programming commands and includes a graphic display for easy setup and operation.
| Timing | 150 MHz |
|---|---|
| Variable Transitions | 2 ns |
| Output Voltage | 10 Vpp (20 Vpp) into 50 Ω |
| Resolution | 10 ps |
| Frequency Accuracy | 0.1% |
| Pattern Capacity | 4 kbit per channel |
| Signal Levels | 3 and 4 Level Signals |
| Output Channels | 1 or 2 Output Channels |
| Programming Interface | SCPI Programming Commands |
The frequency accuracy is specified as 0.1%.
Yes, the instrument supports 3 and 4 level signals.
Yes, it includes SCPI Programming Commands.
