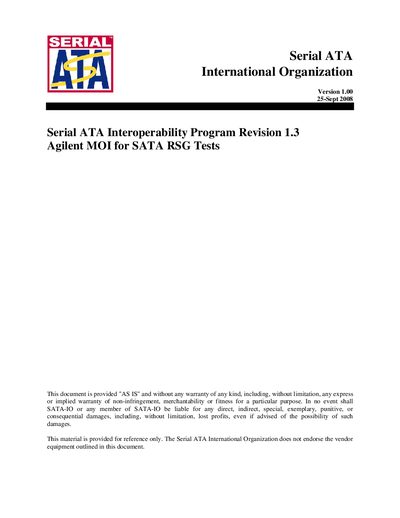

This document outlines test procedures and resource requirements for verifying receiver jitter tolerance in Serial ATA devices using Agilent equipment.
This document provides the Measurement of Interoperability (MOI) procedures for the Serial ATA Receiver Stress Generator (RSG) tests. It details the requirements and steps for testing receiver jitter tolerance under stressed signal conditions for both Gen1 (1.5 Gb/s) and Gen2 (3.0 Gb/s) Serial ATA devices.
The guide specifies resource requirements, calibration procedures for various test setups, and detailed step-by-step instructions for executing specific tests. It covers the use of Agilent equipment such as the N4903A J-BERT, 86100C DCA-J, and 81133/4A Pulse/Pattern Generator as stressed signal sources.
| Supported Data Rates | 1.5 Gb/s and 3.0 Gb/s |
|---|---|
| Document Version | Version 1.00 |
| Revision Program | Revision 1.3 |
The test is designated as RSG-01 and is for the Gen1 (1.5G B/S) Receiver Jitter Tolerance Test.
The test is designated as RSG-02 and is for the Gen2 (3.0G B/S) Receiver Jitter Tolerance Test.
The document provides calibration procedures using the Agilent DSO81204 Real-Time DSO and the Agilent N4903A J-BERT.
