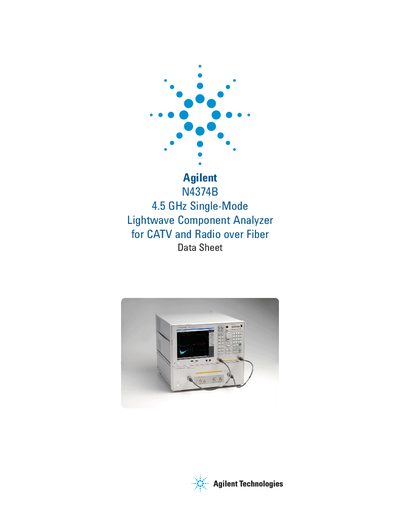

Data sheet for the Agilent N4374B Lightwave Component Analyzer, a turnkey solution for electro-optical S-parameter measurements in CATV and RoF applications…
The Agilent N4374B Lightwave Component Analyzer (LCA) is a turnkey solution designed for electro-optical S-parameter measurements in Cable TV (CATV) and Radio over Fiber (RoF) applications. It is optimized for characterizing electro-optical components such as modulators, detectors, and lasers, as well as electrical components like amplifiers and filters. The device ensures high accuracy and reliability through a temperature-stabilized environment and advanced calibration processes.
| Transmitter Wavelength | 1550nm ± 20 nm |
|---|---|
| Transmitter Wavelength (Alternative) | 1310nm ± 20 nm |
| Relative Frequency Response Uncertainty | ± 0.6 dB @ 4.5GHz (typ) |
| Absolute Frequency Response Uncertainty | ± 1.3 dB @ 4.5GHz (typ) |
| Noise Floor (E/O) | -103 dB W/A |
| Noise Floor (O/E) | -90 dB A/W |
| Typical Phase Uncertainty | ±1.5° max |
| Warranty | 1 year |
It is designed for electro-optical S-parameter measurements in CATV and Radio over Fiber (RoF) or radiofrequency over Glass (RFoG) applications.
Yes, it supports 75 Ohm testing with a minimum loss pad (MLP).
The user calibration is reduced to one pure electrical calibration, which is automated and needs only minimal manual interaction.
Yes, all functions can be controlled remotely via LAN using Microsoft .NET or COM interfaces.
