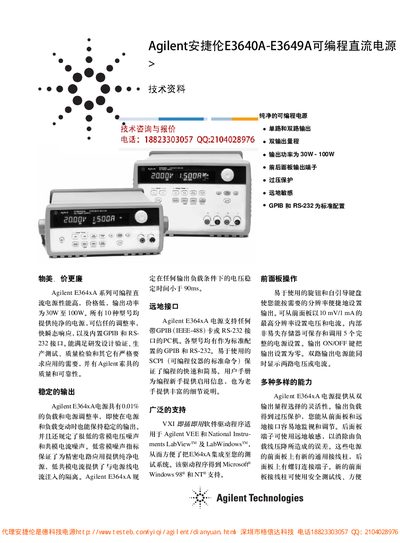

Technical data sheet for Agilent E3640A‑E3649A programmable DC power supplies, covering specifications, interfaces and accessories.
The Agilent E3640A‑E3649A series offers programmable single‑ and dual‑output DC power supplies with output power ranging from 30 W to 100 W. All models provide low‑noise, high‑stability output, remote control via GPIB or RS‑232, and a front‑panel interface for easy voltage and current setting.
The document lists detailed electrical specifications, model‑specific output ranges, compliance standards, warranty information and optional accessories such as rack‑mount kits and interlock hardware. This manual is written in Chinese.
| Output Voltage Range (E3649A) | 0‑60 V |
|---|---|
| Output Current Range (E3649A) | 0‑0.8 A |
| Load and Line Regulation | Voltage < 0.01 % + 3 mV |
| Ripple and Noise (Common‑mode Voltage) | < 5 mVpp / 0.5 mVrms |
| OVP Accuracy | < 0.5 % + 0.5 V |
All models include GPIB and RS‑232 as standard remote interfaces.
The E3649A provides a maximum output power of 100 W.
Yes, the units support remote control through GPIB or RS‑232 using SCPI commands.
