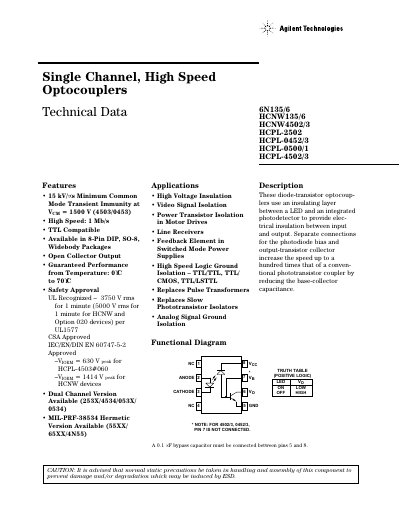

Technical data sheet for Agilent single‑channel high‑speed optocouplers covering specifications, ratings, package outlines and regulatory information.
The Agilent single‑channel high‑speed optocouplers provide up to 15 kV/µs common‑mode transient immunity (VM CM = 1500 V) and operate at data rates of 1 Mb/s. They are available in 8‑Pin DIP, SO‑8 and wide‑body packages with open‑collector outputs and are UL, CSA and IEC/EN/DIN approved for safety.
The datasheet lists absolute maximum ratings, electrical specifications, propagation delays, and switching performance for each part number (HCPL‑4503, HCPL‑0453, HCNW‑4503, HCPL‑2502, HCPL‑0452/3, HCNW‑4502/3). Package outline drawings, ordering options, and recommended soldering profiles are also provided.
| Common‑mode transient immunity | 15 kV/µs (minimum) at VCM = 1500 V |
|---|---|
| Data rate | 1 Mb/s |
| Current Transfer Ratio (CTR) | ≥ 7 % at IF = 16 mA |
| Supply voltage range | -0.5 V to 30 V |
| Maximum output power | 600 mW |
The devices provide a minimum of 15 kV/µs transient immunity at a common‑mode voltage of 1500 V.
The typical CTR is at least 7 % when the input forward current is 16 mA.
