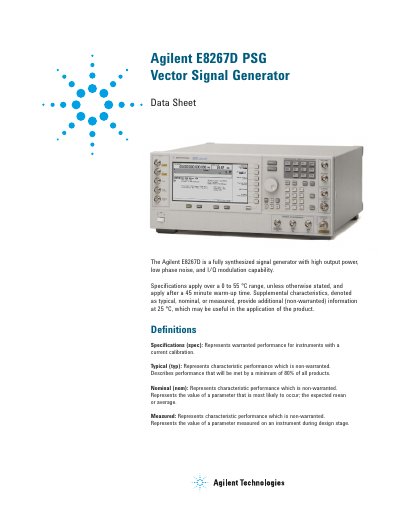

The Agilent E8267D Vector Signal Generator datasheet provides detailed specifications, performance data, and feature descriptions for the fully synthesized PSG.
The Agilent E8267D is a fully synthesized vector signal generator offering high output power, low phase noise, and I/Q modulation capability. Specifications are given for operation over a 0 °C to 55 °C temperature range and after a 45‑minute warm‑up.
The document lists frequency coverage from 250 kHz to 44 GHz, output power up to +18 dBm (typical), various modulation options, remote programming interfaces, and connector details. Options and accessories are also described.
| Frequency range | 250 kHz to 44 GHz |
|---|---|
| Maximum output power (typical) | –130 to +18 dBm |
| Phase noise (20 kHz offset) | –130 dBc/Hz (250 kHz–250 MHz) |
| Input impedance | 50 Ω (nominal) |
The specifications apply over a 0 °C to 55 °C range.
The external reference frequency must be 10 MHz only.
The instrument provides 10 independent continuously variable frequency markers.
The maximum output power is up to +18 dBm (typical) for frequencies above 10 GHz.
