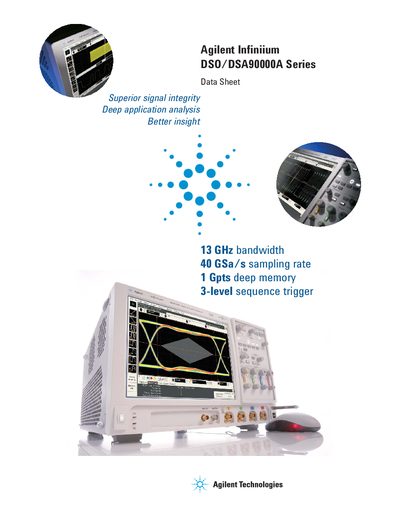

This datasheet details the Agilent Infiniium DSO/DSA90000A Series oscilloscopes, highlighting features like 13 GHz bandwidth, 40 GSa/s sampling, 1 Gpts deep…
The Agilent Infiniium DSO/DSA90000A Series oscilloscopes are designed to provide superior signal integrity, deep application analysis, and better insight for high-speed digital and RF designs. The series eliminates trade-offs by offering industry-leading specifications such as a low noise floor, deep memory depth, and unmatched signal analysis capabilities.
| Maximum Real-time Bandwidth | 13 GHz |
|---|---|
| Maximum Sampling Rate | 40 GSa/s on 4 ch |
| Maximum Memory Depth | 1 Gpts |
| Noise Floor (12 GHz model) | 435 µVrms at 5 mV per division |
| Capture Time (1 Gpts at 40 GSa/s) | 25 ms |
| Triggering Capability | Three-level sequence trigger |
| Operating Temperature Range | -55 to 150 °C |
The series features industry-leading MegaZoom ultra-deep memory capable of 1 Gpts on all four channels.
Yes, it includes standard analog HDTV triggers for high-speed video interfaces such as HDMI and DisplayPort.
The series offers a 22 MSa/s data transfer rate from the oscilloscope.
