Agilent 89600 Series Vector Signal Analyzer Data Sheet

Q: What is the frequency range of the 89641A model?

The 89641A covers a frequency range from DC to 6000 MHz.

Q: What is the initial frequency accuracy for these analyzers?

The initial frequency accuracy is specified as 100 ppb.

Technical specifications for Agilent 89600 Series vector signal analyzers covering frequency, amplitude, phase, and dynamic range performance.

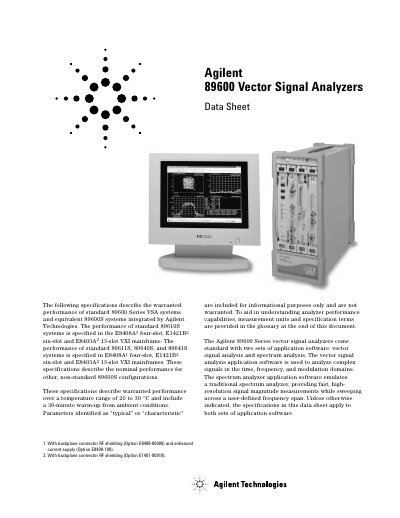

Agilent 89600 Series Vector Signal Analyzer Data Sheet - cover page

Brand: Agilent
Category: Signal generator
Document type: Datasheet
Language: English
Pages: 32
File format: PDF
File size: 171 KB
Published: 10 October, 2026
Updated: 10 October, 2026
MD5 checksum: 85589A143CB1BE2C946EF82D2A45228A
PDF: Agilent 89600 Series Vector Signal Analyzer Data Sheet PDF

About this manual

This data sheet details the warranted performance of standard Agilent 89600 Series VSA systems and equivalent 89600S systems. It covers specifications for models including the 89610A, 89611A, 89640A, and 89641A, describing their capabilities in spectrum analysis and vector signal analysis modes.

What's inside

Frequency
Resolution Bandwidth Filtering
Amplitude
Phase
Time and Waveform
Measurement, Display, and Control
Software Interface
Glossary

Specifications

Frequency range (89641A)	DC – 6000 MHz
Frequency tuning resolution	1 mHz
Initial frequency accuracy	100 ppb
Aging (frequency)	1 ppb/day
Nominal impedance	50 ohms
Third-order intermodulation distortion (IF/baseband mode)	< –70 dBc

Frequently asked questions

What is the frequency range of the 89641A model?
