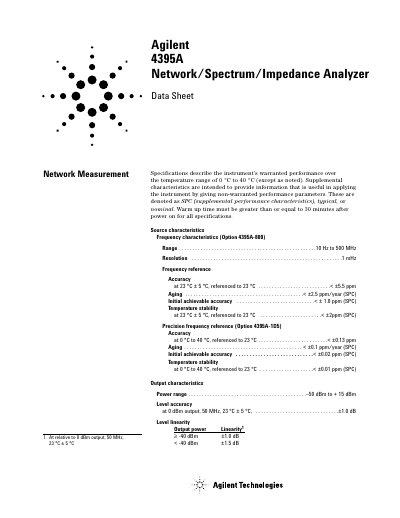

This datasheet details the warranted and supplemental performance characteristics of the Agilent 4395A Network/Spectrum/Impedance Analyzer.
The document provides a comprehensive overview of the Agilent 4395A Network/Spectrum/Impedance Analyzer, specifying its warranted performance over a temperature range of 0 °C to 40 °C. It covers source characteristics, frequency ranges from 10 Hz to 500 MHz, and output power levels up to +15 dBm.
The datasheet further details network measurement capabilities, including input attenuator settings ranging from 0 to 50 dB, IF bandwidth options, and crosstalk specifications. It also outlines receiver characteristics such as absolute amplitude accuracy, dynamic accuracy, phase response, and group delay measurements.
| Frequency Range | 10 Hz to 500 MHz |
|---|---|
| Output Power Range | -50 dBm to + 15 dBm |
| Input Attenuator Range | 0 to 50 dB, 10 dB step |
| Connector Type | Type N female |
| Impedance | 50 Ωnominal |
| Maximum Input Level | +30 dBm (at input attenuator: 40 dB or 50 dB) |
| Resolution Bandwidth Range | 1 Hz to 1 MHz, 1-3 step |
Warm up time must be greater than or equal to 30 minutes after power on.
The accuracy is < ±5.5 ppm, referenced to 23 °C.
The maximum safe input level is +30 dBm or ±7 Vdc.
