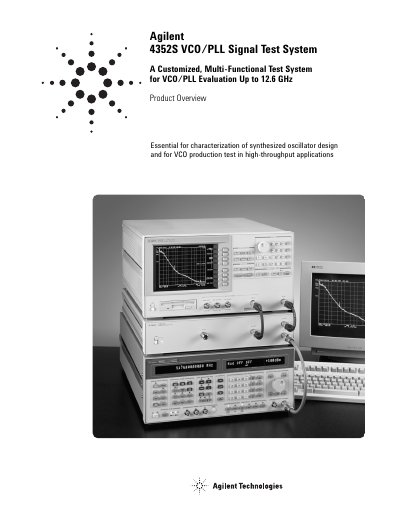

Agilent 4352S is a customized, multi-functional test system for evaluating VCO/PLL performance up to 12.6 GHz with Signal Analyzer and VCO Tester modes.
The Agilent 4352S VCO/PLL Signal Test System is a customized, multi-functional test system designed for the evaluation of Voltage-Controlled Oscillators (VCO) and Phase-Lock Loops (PLL) up to 12.6 GHz. It provides comprehensive measurement capabilities for both oscillator design and production testing, including frequency, RF power, phase noise, spectrum, and RF transient measurements. The system supports two operating modes: 'Signal Analyzer' and 'VCO Tester', and includes features such as automatic frequency control (AFC), programmability with IBASIC, and a built-in 3.5-inch floppy disk drive for saving test setups and results.
| Frequency range | 10 MHz to 3 GHz (12.6 GHz max. with Agilent 43521A) |
|---|---|
| RF power range | -10 dBm to +20 dBm |
| Phase noise resolution | 100 Hz to 10 MHz offset |
| DC power voltage | 0 to 15.5 V (50 mA max.) |
| DC control voltage | 0 to 20 V (20 mA max.) |
| 1 kHz signal voltage | 0 to 1 Vrms |
| Display | 2 Color LCD |
| Storage | Built-in 3.5 inch flexible disk drive |
The system can evaluate up to 12.6 GHz when the Agilent 43521A downconverter unit is added.
The system supports two operating modes: 'Signal Analyzer' and 'VCO Tester'.
Yes, it offers programmability with IBASIC for controlling a PLL or test automation.
