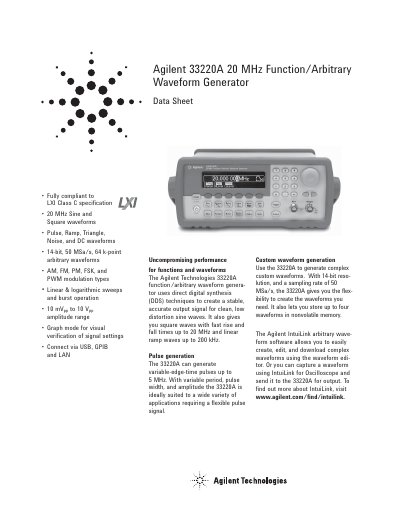

This datasheet details the Agilent 33220A 20 MHz function and arbitrary waveform generator, covering specifications, features, and ordering information.
The Agilent 33220A is a 20 MHz function and arbitrary waveform generator that utilizes direct digital synthesis (DDS) techniques to produce stable, accurate output signals. It supports a wide range of standard waveforms including sine, square, ramp, triangle, pulse, noise, and DC, as well as complex custom waveforms with 14-bit resolution and a 50 MSa/s sampling rate.
The device features internal modulation types such as AM, FM, PM, FSK, and PWM, along with linear and logarithmic sweeps and burst operation. It offers multiple interface options including USB, GPIB, and LAN, and is fully compliant with LXI Class C specifications. The datasheet provides detailed measurement characteristics, programming times, and environmental specifications.
| Frequency Range (Sine/Square) | 1 µHz to 20 MHz |
|---|---|
| Arbitrary Waveform Resolution | 14 bits |
| Sample Rate | 50 MSa/s |
| Amplitude Range | 10 mVpp to 10 Vpp |
| Power Supply | 100 - 240 V @ 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Interfaces | USB, GPIB, LAN |
It generates standard sine, square, ramp, triangle, pulse, noise, and DC waveforms, plus built-in arbitrary waveforms like exponential rise/fall and cardiac waveforms.
Yes, it includes internal AM, FM, PM, FSK, and PWM modulation types.
The warm-up time is 1 hour.
Yes, it is fully compliant to LXI Class C specification.
