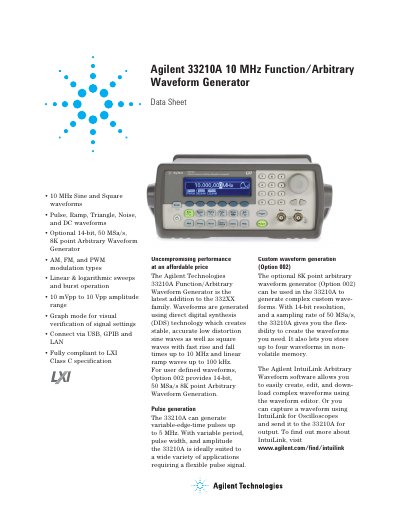

This datasheet details the specifications, measurement characteristics, and programming times for the Agilent 33210A 10 MHz Function/Arbitrary Waveform…
The Agilent 33210A is a 10 MHz Function/Arbitrary Waveform Generator designed for generating stable, accurate low distortion sine waves and square waves with fast rise and fall times. It utilizes direct digital synthesis (DDS) technology and supports various waveform types including pulse, ramp, triangle, noise, and DC. An optional 14-bit, 50 MSa/s 8K point Arbitrary Waveform Generator (Option 002) allows for the creation of complex custom waveforms.
| Frequency Range (Sine/Square) | 1 mHz to 10 MHz |
|---|---|
| Amplitude Range | 10 mVpp to 10 Vpp into 50 Ω |
| Sample Rate (Option 002) | 50 MSa/s |
| Waveform Length (Option 002) | 2 to 8 k points |
| Amplitude Resolution (Option 002) | 14 bits |
| Operating Temperature | 0°C to 55°C |
| Power Supply | 100 – 240 V @ 50/60 Hz |
| Main Output Impedance | 50 Ω typical |
The generator connects via USB, GPIB, and LAN interfaces.
Yes, with Option 002, it provides an 8K point Arbitrary Waveform Generator with 14-bit resolution.
The warm-up time is 1 hour.
