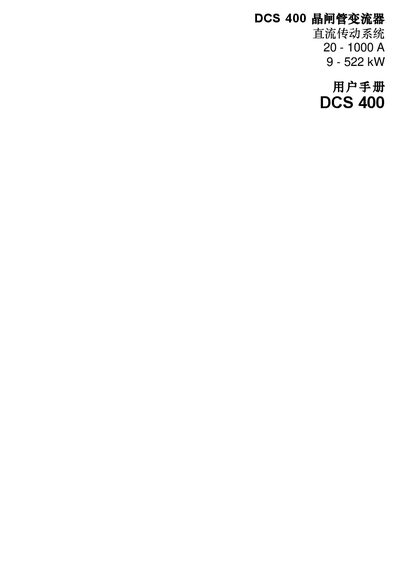

The ABB DCS 400 Thyristor Converter User Manual provides system overview, technical data, installation, operation, and communication details.
This manual describes the compact DCS 400 thyristor‑based DC drive system, covering its power range of 9 – 522 kW and supply voltage of 230 – 500 V. It includes system architecture, module specifications, cooling, and control panel functions.
The guide also details the software environment (Windows‑based tools), installation procedures, safety guidelines, troubleshooting, and serial communication options such as RS232, Profibus, and panel interfaces. Appendices list optional accessories and programming macros. This manual is written in Chinese.
| Power range | 9 – 522 kW |
|---|---|
| Supply voltage | 230 – 500 V |
| Current range | 20 – 1000 A |
| Module dimensions (type A1) | 310 x 270 x 200 mm |
The DCS 400 can deliver between 9 kW and 522 kW.
It operates from 230 V up to 500 V.
The software runs on any Windows PC or the control panel, providing a debugging wizard for parameter setting, fault monitoring, and data display.
