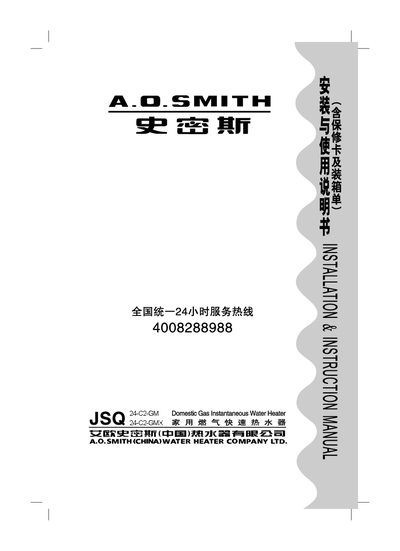

The A.O. Smith JSQ24-C2-GM and JSQ24-C2-GMX gas water heater user manual provides safety guidelines, installation steps, operation instructions, maintenance…
This manual begins with essential safety precautions for installing and using the A.O. Smith gas water heater, including requirements for proper ventilation, correct gas type, and the use of approved installation personnel. It also details the dimensions, appearance, and required accessories for the JSQ24-C2-GM and JSQ24-C2-GMX models.
Subsequent sections cover the heater’s operating features, such as automatic temperature control, fault diagnosis, and remote control options, followed by detailed installation instructions, daily maintenance procedures, troubleshooting guidance, and warranty information. Technical specifications for both models are listed in a dedicated section. This manual is written in Chinese.
| Rated heat output | 24 kW |
|---|---|
| Hot water production at +25°C | 12 kg/min |
| Hot water production at +40°C | 7.5 kg/min |
| Fuel type | Natural gas |
| Rated gas pressure | 2 kPa |
| Ignition method | Pulse ignition |
| Applicable water pressure | 0.02–0.8 MPa |
| Minimum water flow | 2.7 L/min |
| Dimensions (H×W×D) | 555 mm × 350 mm × 132 mm |
| Net weight | 16 kg |
| Standby power consumption | 1.5 W (on) / 0.5 W (off) |
| Supply voltage | AC 220 V, 50 Hz |
Use gas‑specific aluminum‑plastic pipe, metal flexible pipe, or metal pipe; rubber pipe is not recommended and must be replaced every 18 months if used.
