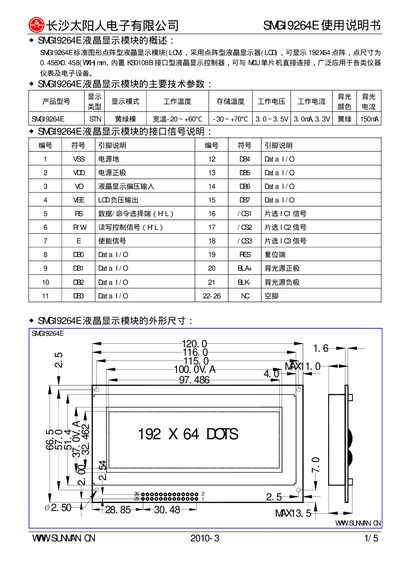

SMG19264E is a 192X64 dot matrix LCD module with a dot size of 0.458X0.458(WXH)mm. It adopts KS0108B interface LCD display controller and can be directly connected to MCU microcontroller.
This manual provides an overview of the SMG19264E LCD module, including its display characteristics, physical dimensions, and electrical interface. It describes the module's STN LCD type, pixel size, and built‑in GO108B controller interface.
The document details the pin‑out, signal timing, initialization sequence, and data handling procedures required to operate the module with an 8051‑compatible controller. Reference connection diagrams and timing tables are included for hardware integration. This manual is written in Chinese.
| Display resolution | 192 x 64 dots |
|---|---|
| Pixel size | 0.458 x 0.458 mm |
| Storage temperature | -30 °C to +70 °C |
| Supply voltage | 3.0 V to 3.5 V |
The module has a resolution of 192 × 64 dots.
Initialization is performed by writing the command 0x3F (5.2) after setting the initial pointer with 0xOOOH (5.1).
