The SMC1602E is a standard character dot matrix LCD module that can display 16 characters in 2 rows of Western characters. It is widely used in various instruments, meters, and electronic devices.
The SMC1602E is a standard character dot‑matrix LCD module that can display 16 characters across 2 lines. Each character measures 2.95 mm × 5.55 mm and the module uses an HD44780‑compatible controller, allowing direct connection to an MCU.

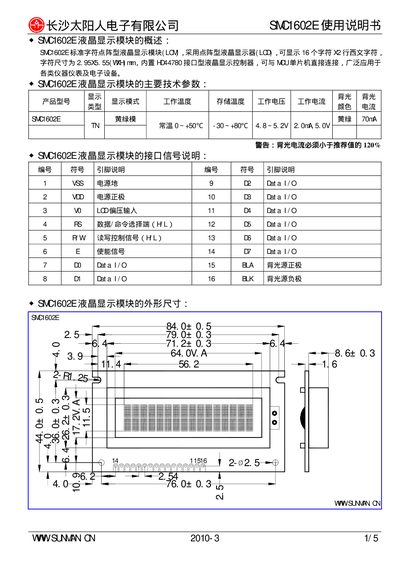

The manual describes the module’s electrical characteristics, pin assignments, physical dimensions, and the required initialization and data‑write procedures. Timing diagrams and backlight current settings are also included to help integrate the display into instruments and electronic equipment. This manual is written in Chinese.
| Operating temperature | -30 °C to +80 °C |
|---|
