iSpirit1248E is an adaptive Ethernet switch. Each port supports MDI/MDIX auto-flip, making each port can be either a normal port or a port, and each port is independent. You can arbitrarily select any port of this series switch to connect to any port of other network devices (switches, hubs, etc.) by twisted pair (regardless of normal port or port).

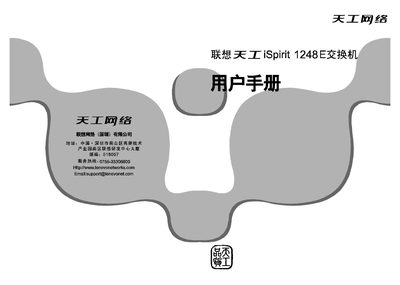

This manual covers the basic overview of the iSpirit1248E Ethernet switch, including its 48 10/100 Mbps ports, MDI/MDIX uplink capability, and LED status indicators. Safety instructions and wiring guidelines are also included.
Detailed sections describe power requirements (110‑260 V AC, 15 W), mechanical dimensions (440 × 260 × 44 mm), and compliance with IEEE 802.3 standards. The document provides step‑by‑step installation procedures, configuration options, and troubleshooting tips for end users.
| Port Speed | 10/100 Mbps |
|---|---|
| Uplink Type | MDI/MDIX |
| Power Input | 110‑260 V AC, 50/60 Hz |
| Dimensions | 440 × 260 × 44 mm |
| LED Types | Power, Link, Activity |
It provides 48 Ethernet ports that support 10/100 Mbps operation.
The device includes Power, Link, and Activity LEDs to show status.
The unit measures 440 mm × 260 mm × 44 mm.
