iSpirit1226G is a Gigabit Ethernet switch. It provides Gigabit ports and supports new applications, ensuring greater network availability and access flexibility.

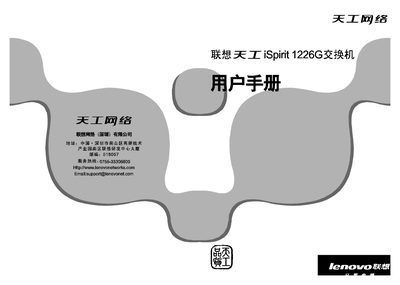

This manual describes the Lenovo iSpirit1226G Ethernet switch, covering its hardware components, LED indicators, power requirements, and supported network standards. It is intended for installers and administrators who need to set up and operate the switch safely and efficiently.
The document includes sections on hardware overview, power and LED specifications, port configurations (10/100/1000Mbps, MDI/MDIX uplink), MAC address capacity, and detailed wiring and configuration procedures. Contact information for technical support is also provided.
| Power Input | 100‑240V, 50/60 Hz, 0.6 A, 12 W |
|---|---|
| Uplink Port | 10/100/1000 Mbps MDI/MDIX |
| IEEE Standards | 802.3ab 1000BASE‑T, 802.3u 100BASE‑TX, 802.3x |
The switch operates on 100‑240 V AC at 50/60 Hz, drawing 0.6 A and consuming 12 W.
