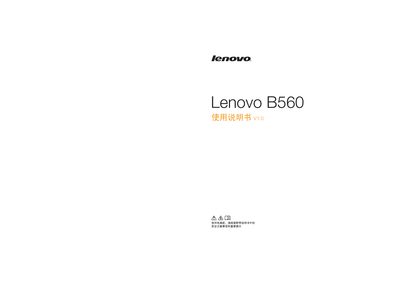

This is the user manual of Lenovo B560 laptop, which introduces the functions and usage methods of the computer.
The Lenovo B560 laptop user manual provides step‑by‑step instructions for first‑time setup, power‑adapter and battery use, keyboard, touchpad, external devices, and special keys. It also explains how to connect wired and wireless networks, use the built‑in camera, microphone, fingerprint reader, and other optional hardware.
Additional sections cover the One‑Key Rescue system, common troubleshooting procedures, environmental and RoHS declarations, and a detailed specifications table. An index and trademark information are included at the end of the 38‑page document. This manual is written in Chinese.
| Dimensions | ≈378 mm × 252 mm × 20‑34 mm |
|---|---|
| Weight | ≈2.5 kg (with 6‑cell battery) |
| CPU | Intel Calpella processor |
| Memory | DDR3, 2 × SODIMM slots |
| Display | 15.6‑inch HD LCD |
| Hard Drive | 2.5‑inch, 9.5 mm SATA |
| Battery | 48 Wh, 6‑cell lithium‑ion |
| Power Adapter | 20 V, 65 W |
| USB Ports | 3 × USB 2.0, 1 × eSATA/USB |
It has three USB 2.0 ports and one eSATA/USB port.
The laptop uses a 48 Wh, 6‑cell lithium‑ion battery.
The manual assumes the user is running Windows 7.
Approximately 378 mm × 252 mm × 20‑34 mm.
