S4109SF/S4117SF+/S4125SF unmanaged switch is a high-performance, easy-to-use Ethernet switch, suitable for broadband community networks, enterprise networks, campuses, and government networks.

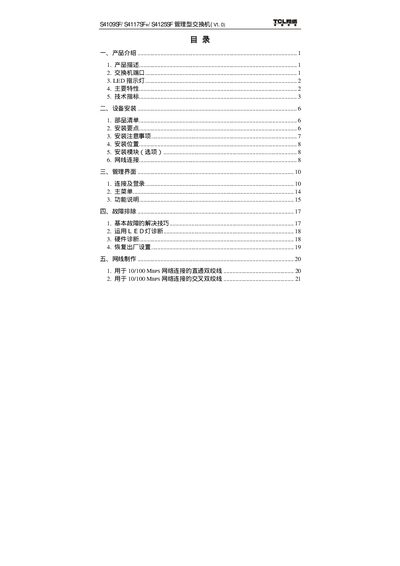

This manual introduces the TCL S4109SF, S4117SF+, and S4125SF managed Ethernet switches, covering their physical features, port configurations, and supported standards. It also explains the LED status indicators and the basic wiring requirements.
The document contains step‑by‑step installation instructions, details on the web‑based management interface, technical specifications, and a troubleshooting section to help resolve common network issues. This manual is written in Chinese.
| Dimensions (S4109SF) | 250 mm × 130 mm × 39 mm |
|---|---|
| Dimensions (S4125SF) | 440 mm × 220 mm × 44 mm |
| Weight | 1.0 kg / 1.8 kg / 2.0 kg |
| Input Voltage | 160 V ~ 260 V AC |
| Current Consumption | 0.2 A / 0.4 A / 0.5 A |
| Relative Humidity | 10 % ~ 90 % at 40 °C and 65 °C |
| RJ‑45 Ports | 8/16/24 ports, 10/100 Mbps |
| FX Port | 1 port, 100 Mbps |
| Certifications | FCC Class A, VCCI Class A, CISPR Class A, CSA/NRTL, TUV/GS |
The S4109SF model offers 8, 16, or 24 10/100 Mbps RJ‑45 ports and one 100 Mbps FX port.
Operating temperature is –10 °C to +50 °C, while storage temperature is –20 °C to +65 °C.
