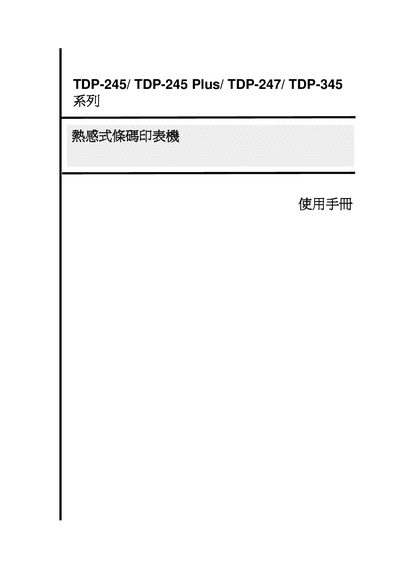

This manual introduces the function and operation of TDP-245/ TDP-245 Plus/ TDP-247/ TDP-345 series thermal barcode printers.
This service manual provides detailed information for the TSC TDP-245 series thermal label printers, including the TDP-245, TDP-245 Plus, TDP-247, and TDP-345 models. It contains safety instructions, regulatory compliance data, component descriptions, and step‑by‑step procedures for installation, network configuration, and maintenance.
The document also includes diagnostic tool usage, interface settings (USB, RS‑232, Ethernet), and a comprehensive troubleshooting guide. Update records and contact information for TSC technical support are provided at the end of the manual. This manual is written in Chinese.
| Printing speed | 2.0‑7.0 inches per second |
|---|---|
| Paper thickness (cutting blade) | 0.06‑0.19 mm, up to 500 000 cuts |
| Paper thickness (inner blade) | 0.06‑0.12 mm, up to 500 000 cuts |
| Battery type | CR2032 timer battery |
Replace the CR2032 timer battery only with the same type as specified by the manufacturer.
Disconnect the printer from the power source and use a damp cloth; do not use aerosol cleaners.
The printer can be set to print at 2.0, 3.0, 4.0, 5.0, 6.0, or 7.0 inches per second.
The printer provides USB, RS‑232 (DB‑9), and Ethernet interfaces.
