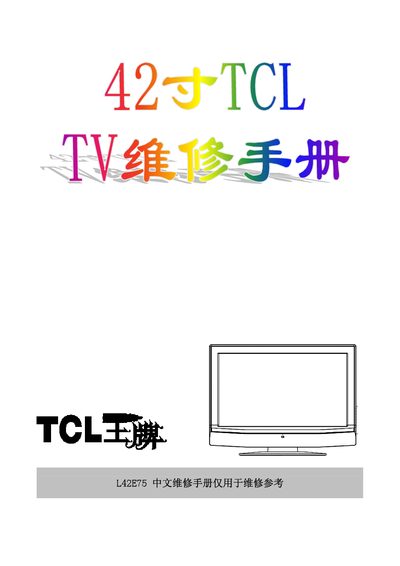

This manual introduces the maintenance method of the liquid crystal TV L42E75
This service manual covers the TCL L42E75 42‑inch LCD television. It includes safety instructions, disassembly steps, PCB layout diagrams, and a detailed bill of materials for technicians.
The document also lists key technical specifications such as screen resolution, power requirements, dimensions, operating temperature and humidity ranges, helping service personnel verify correct operation and select appropriate replacement parts.
| Screen size | 42 inches |
|---|---|
| Resolution | 1360 x 768 (60 Hz) |
| Power input | AC 100‑240 V, 50/60 Hz |
| Dimensions (W×H×D) | 1050 mm × 767 mm × 296 mm |
| Operating temperature | -25 °C to +60 °C |
The TV has a 42‑inch display.
It operates on AC 100‑240 V at 50 or 60 Hz.
The unit can operate from –25 °C up to +60 °C.
The TV measures 1050 mm × 767 mm × 296 mm.
