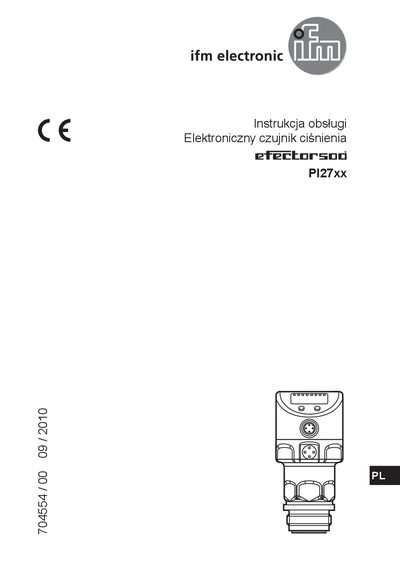

The ifm PI27xx series is an electronic pressure sensor designed for measuring relative pressure. This manual provides safety instructions, functional descriptions, wiring details and user‑adjustable settings.
It includes step‑by‑step guidance for configuring output signals, calibrating the sensor with two calibration points, and detailed technical specifications such as pressure ranges and analog output scaling. This manual is written in Polish.
| Pressure type | Relative pressure |
|---|---|
| Pressure range (example model PI2793) | -1 to 25 bar |
| Measurement range (mbar) | -48 to 1000 mbar |
Calibration is performed by defining two calibration points (CP1 and CP2) and adjusting the zero‑point (COF) as described in the calibration section.
The device measures relative pressure.
