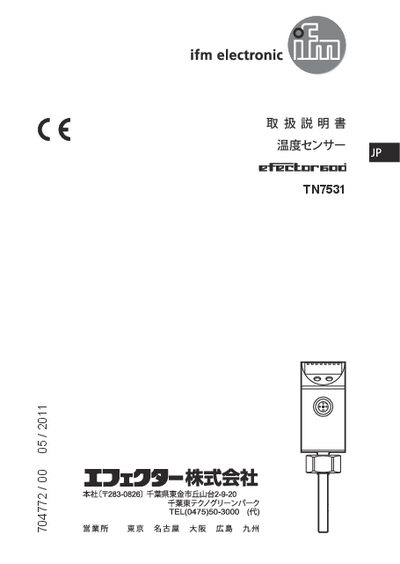

This document is an instruction manual for the temperature sensor TN7531 704772 / 00 05 / 2011 JP. The document describes the labeling instructions, safety precautions, features and characteristics, installation methods, wiring methods, display and operation instructions, and menu structure and descriptions of the temperature sensor.
This user manual explains how to safely install, wire and operate the ifm TN7531 temperature sensor. It includes important safety precautions such as ensuring power is off, only trained personnel performing the work, and avoiding contact with the sensing element or corrosive media.
The document describes the sensor's functions, including dual switching outputs (OUT1, OUT2), communication via IO-Link, and parameter configuration for temperature thresholds, hysteresis and wind functions. Installation guidance covers the use of M12, G14 or G12 adapters, proper torque (max 50 Nm) and greasing. Technical specifications such as operating temperature range, IP67 protection rating and sensor element type are listed in the specifications section. This manual is written in Japanese.
| Sensor element | PT1000 (DIN EN 60751 class B) |
|---|---|
| Protection rating | IP67 |
| Operating temperature | -25 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
The OUT1 and OUT2 outputs can be set to switching mode based on temperature set points (SPx) and reset points (rPx) with options such as hysteresis, normal open/close, and wind functions, all configured via parameter settings.
The sensor has an IP67 protection rating, making it dust‑tight and protected against immersion up to 1 m.
