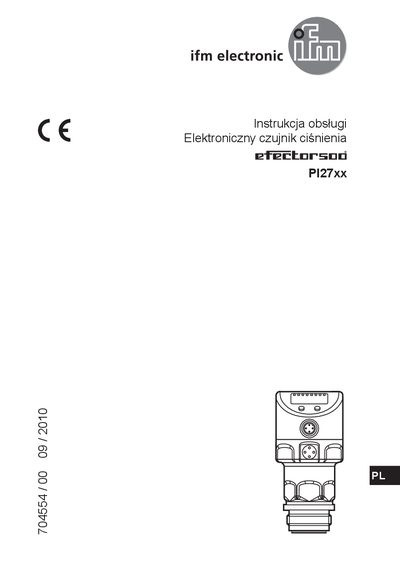

PI27xx Electronic Pressure Sensor Operation Manual
This manual provides comprehensive instructions for the IFM PI27xx electronic pressure sensor. It includes safety guidelines, description of functions, installation steps, wiring, menu navigation, parameter settings, diagnostic features and detailed technical specifications.
The document is organized into sections such as safety instructions, sensor functions, mounting, electrical connection, menu structure, parameter configuration, operation, dimensional drawing and technical data. It also contains factory‑default settings and calibration procedures for adapting the sensor to specific applications. This manual is written in Polish.
| Supply voltage | 18‑32 V DC |
|---|---|
| Current consumption | < 45 mA |
| Nominal current | 250 mA |
| Voltage drop | < 2 V |
| Power‑on delay | 0.4 s |
| Switching output response time | 3 ms |
| Switching frequency | 125 Hz |
| Analog output range | 4‑20 mA / 20‑4 mA |
| Maximum load resistance | (UB‑10) × 50 Ω |
Use the menu option "Przywrócenie ustawień fabrycznych" to reset the device to its factory defaults.
The sensor operates from 18 V to 32 V DC.
The sensor draws less than 45 mA during operation.
