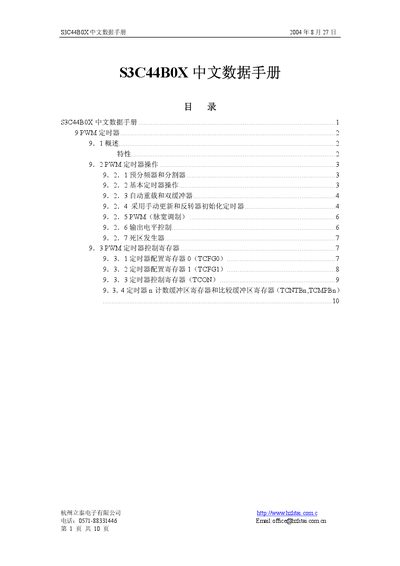

S3C44B0X Chinese data manual introduces the characteristics and operating methods of the product's PWM timer, including pre-divider and divider, basic timer operation, auto-reload and double buffer, manual update and inverter initialization timer, PWM (pulse width modulation), output level control, dead time generator, etc.
The S3C44B0X datasheet provides a detailed description of the chip’s internal timer architecture, including six 16‑bit timers, prescalers, dividers, PWM capabilities, dead‑zone generator and register maps. It explains how each timer can operate in interrupt or DMA mode and shows the configuration registers (TCFG0, TCFG1, TCON) needed for various functions.
The document also includes timing calculations, example PWM waveforms, and instructions for using manual update, auto‑reload, output inversion and dead‑zone features. All information is presented in Chinese with tables and diagrams for developers integrating the S3C44B0X into their designs. This manual is written in Chinese.
| Number of timers | 6 16‑bit timers |
|---|---|
| PWM capable timers | Timers 0‑4 have PWM function |
| Dead‑zone generator | Available on Timer 0 for high‑power PWM control |
The chip includes six 16‑bit timers.
It inserts a time gap between switching devices to prevent them from being on at the same time.
