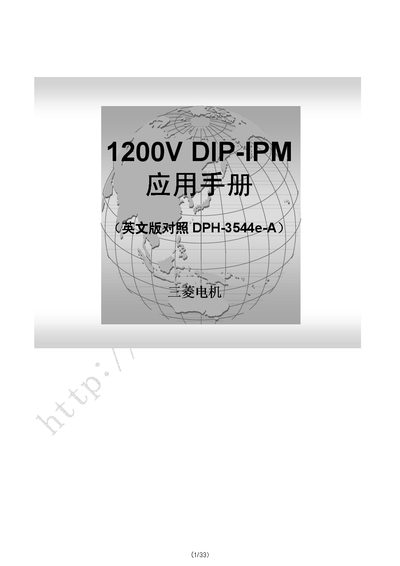

1200V DIP-IPM Application Manual introduces the features and characteristics of 1200V DIP-IPM, including electrical characteristics, package overview, application guide, etc.
The document introduces the 1200V DIP‑IPM power module, describing its IGBT ratings, packaging, and typical applications such as three‑phase DC/AC inverters. It outlines functional features, including built‑in protection functions and control interfaces.
Key sections cover maximum electrical ratings, thermal resistance data, recommended mounting and wiring practices, and safety precautions for handling, storage, and installation. The note also lists part numbers (e.g., PS22052, PS22056) with their corresponding current, voltage, and power ratings. This manual is written in Chinese.
| Maximum collector current (Ic) – PS22052 | 5 A |
|---|---|
| Power rating – PS22052 | 0.75 kW |
Part PS22056 is rated for 25 A continuous collector current.
