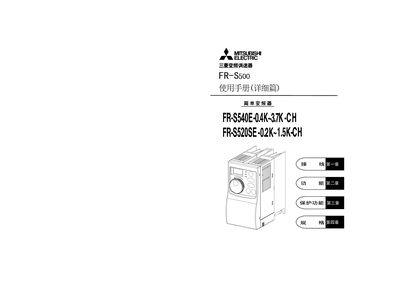

FR-S500 simple inverter user manual(detailed chapter) introduces the safety precautions, installation, operation, maintenance and inspection methods of the inverter.
This manual provides comprehensive guidance for the Mitsubishi Electric FR‑S500 series variable frequency drive. It includes safety precautions, wiring diagrams, terminal specifications, and instructions for installation, operation, and troubleshooting.
The document also describes protection functions, parameter settings, RS‑485 communication, and command codes, helping technicians and end‑users configure the drive for reliable performance in industrial applications. This manual is written in Chinese.
| Operating temperature range | -10 °C to +50 °C |
|---|---|
| Maximum ambient humidity | ≤ 90 % RH |
| Storage temperature range | -20 °C to +65 °C |
| Maximum installation altitude | ≤ 1000 m (5.9 m/s²) |
| Input power rating | 3‑phase 400 V |
| Output power rating | 3‑phase 200 V |
| Maximum analog voltage input | 20 V |
| Maximum analog current input | 30 mA |
Install the drive on a non‑combustible surface, keep it away from flammable materials, and disconnect the power on the supply side if a fault occurs.
