TMS10 series differential magnetic resistive sensor is a high precision, high sensitivity magnetic resistive sensor, widely used in speed, angle detection, linear small displacement detection and other occasions.
The TMS10 series differential magnetic resistance sensor from Trions offers a compact metal housing, high sensitivity, and strong anti‑interference performance. It detects magnetic fields generated by ferromagnetic objects or shafts, producing a voltage output proportional to the magnetic field change.

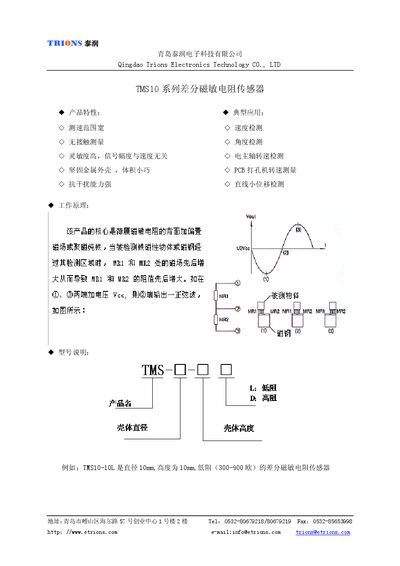

Typical applications include speed measurement of gears and rotors, angle detection, and small linear displacement measurement. The manual details installation, electrical connections, operating voltage limits, temperature range, and handling precautions. This manual is written in Chinese.
| Maximum operating voltage | 10 V DC |
|---|---|
| Rated operating voltage | 5 V DC |
| Total resistance range | 300‑900 Ω |
| Operating temperature range | -30 °C to 70 °C |
| Cut‑off frequency | 20 kHz |
It operates safely between –30 °C and +70 °C.
The sensing surface must not be squeezed, collided with, or scratched to avoid damage.
