TMS8 series differential magnetic resistance sensor is a non-contact speed sensor produced by Qingdao Trions Electronics Technology Co., LTD. It has the characteristics of wide speed range, speed detection, non-contact measurement, position detection, high sensitivity, signal amplitude independent of speed, electric spindle speed detection, solid metal shell, small size, PCB punching machine speed measurement, strong anti-interference ability and linear small displacement detection.

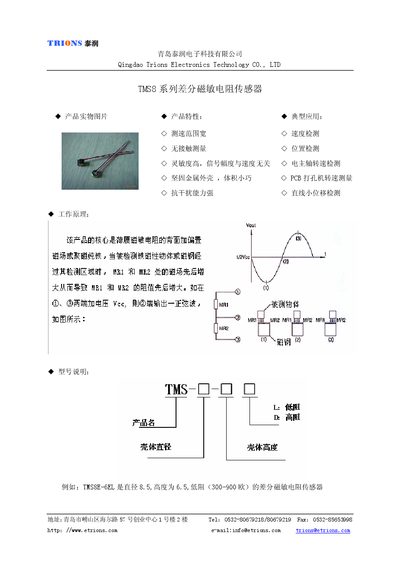

The manual describes the TMS8 series differential magnetic resistance sensor produced by Trions (Qingdao Trions Electronics Technology Co., Ltd.). It outlines product features such as wide speed range, non‑contact measurement, high sensitivity, and robust metal housing.
Typical applications include speed detection for spindles, PCB drilling machines, and small linear displacement measurement. The document also lists technical parameters, dimensions, and important usage precautions to ensure reliable operation. This manual is written in Chinese.
| Maximum working voltage | 10 V DC |
|---|---|
| Rated working voltage | 5 V DC |
| Cut‑off frequency | >20 kHz |
| Operating temperature range | -30 °C to 70 °C |
The sensor can operate from –30 °C to 70 °C.
The maximum supply voltage is 10 V DC.
The recommended rated working voltage is 5 V DC.
