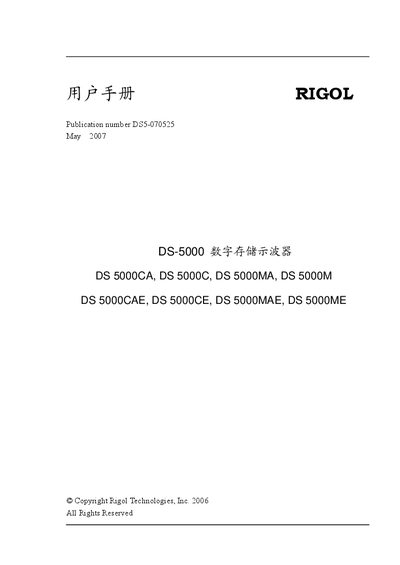

This manual introduces the features and characteristics of the DS 5000 and DS5000E series digital storage oscilloscopes and their usage methods
This manual begins with a comprehensive safety overview, covering proper power‑cord use, grounding, avoiding opening the cover while powered, and environmental precautions to protect both the user and the instrument. It also introduces the DS‑5000 series, highlighting its front‑panel layout, basic controls, and the range of models available.
The remainder of the guide walks the user through primary and advanced operation, including automatic waveform setup, vertical and horizontal system configuration, trigger and sampling settings, measurement functions, and maintenance procedures. Appendices list technical specifications, accessories, and service information. This manual is written in Chinese.
| Channel Bandwidth | 200 MHz (DS‑5202CA/CAE), 150 MHz (DS‑5152 series), 100 MHz (DS‑5102 series), 60 MHz (DS‑5062 series), 40 MHz (DS‑5042M/ME), 25 MHz (DS‑5022M/ME) |
|---|---|
| Maximum Sample Rate | 1 GSa/s (DS‑5000CA/CAE, DS‑5000MA/MAE), 500 MSa/s (DS‑5000C/CE, DS‑5000M/ME) |
| Input Impedance | 1 MΩ ± 2 % (1 MΩ) / 10 MΩ ± 2 % (10 MΩ) |
| Power Consumption | < 50 W |
| Operating Temperature | 10 °C ~ +40 °C |
| Power Supply Voltage | 100‑240 V AC RMS, 50 Hz, CAT II |
Use the correct power cord, ensure the instrument is properly grounded, do not operate with the cover open, and avoid exposure to moisture or flammable environments.
Press the AUTO button to automatically select appropriate waveform display and scaling settings.
The oscilloscope operates from a universal AC supply of 100‑240 V RMS, 50 Hz, rated CAT II.
